Yamaha 20HP Outboard

£2775

Built tough from double-walled polyethylene — low maintenance, safe, and ready for work or play.

Yamaha 20HP Outboard

20hp Yamaha Outboard
Download Fact Sheet

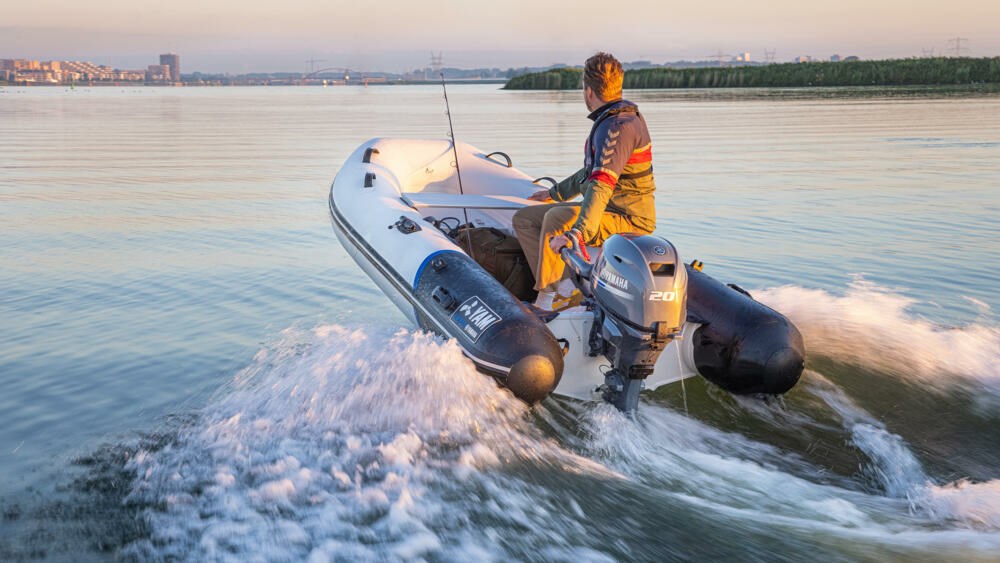

20hp Yamaha outboard engine

Key Features

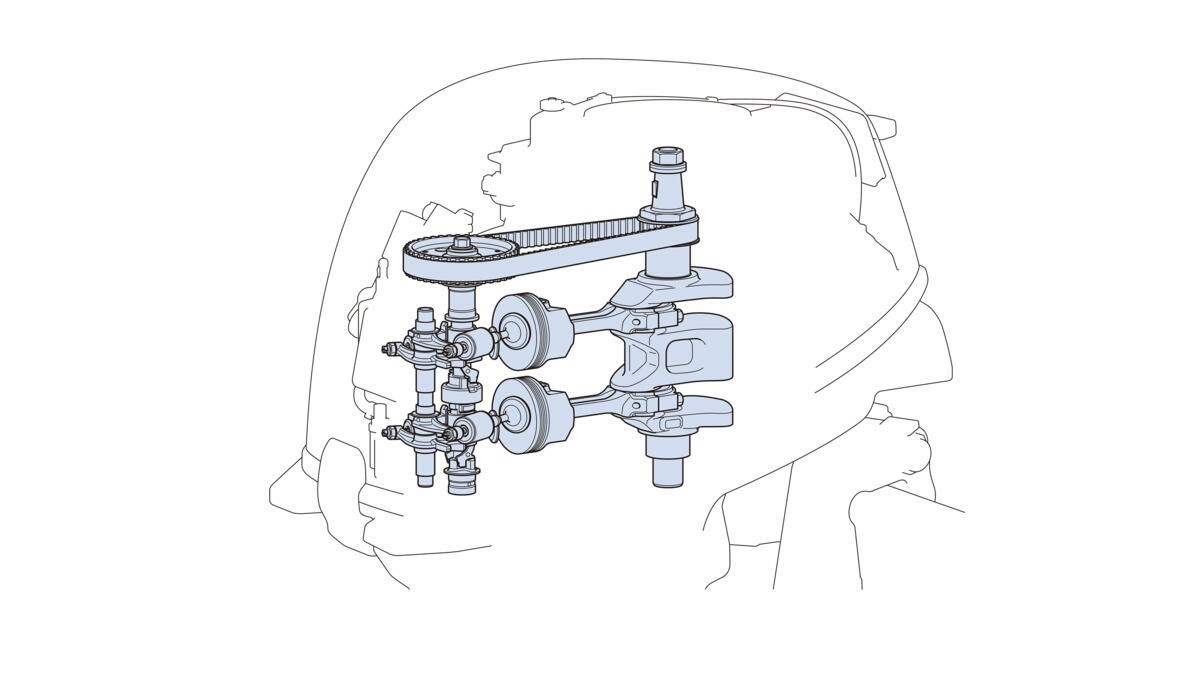

Special power-to-weight performance

Special power-to-weight performance

Strong enough to surprise you, light enough to carry. This perfectly balanced design delivers all the muscle of a big engine without weighing down the fun.

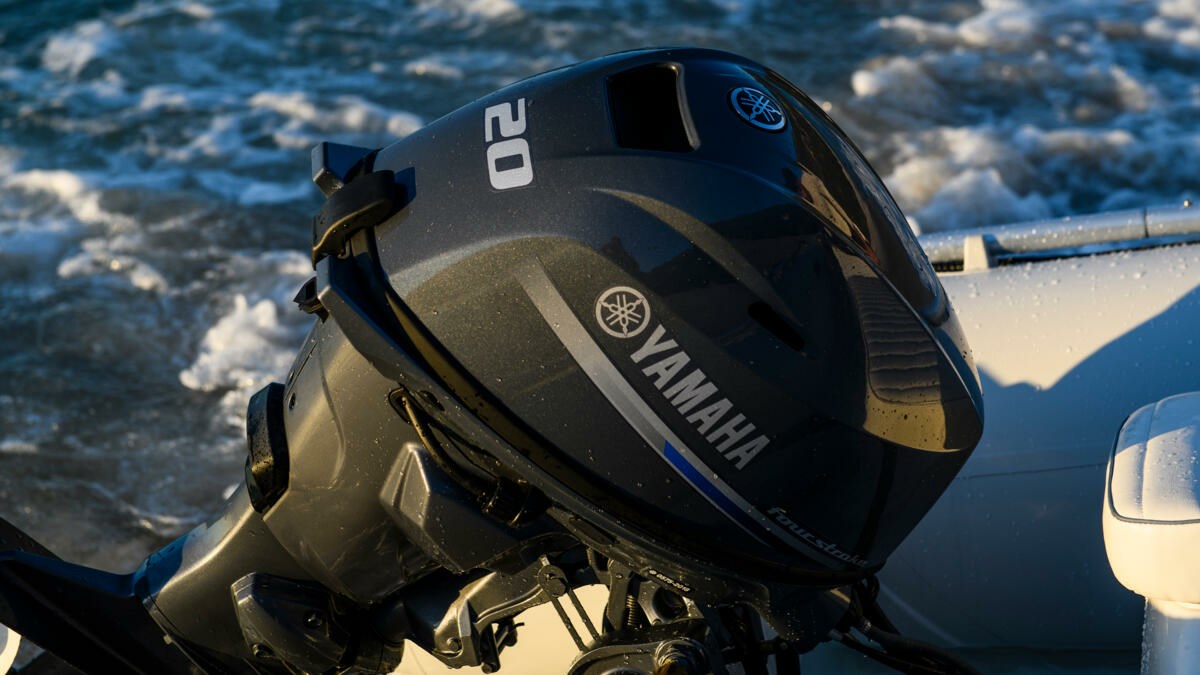

One-piece top cowling design

One-piece top cowling design

Form meets function in a single piece. The sculpted cowling is smart, sturdy and t that looks sharp and keeps your engine even sharper.

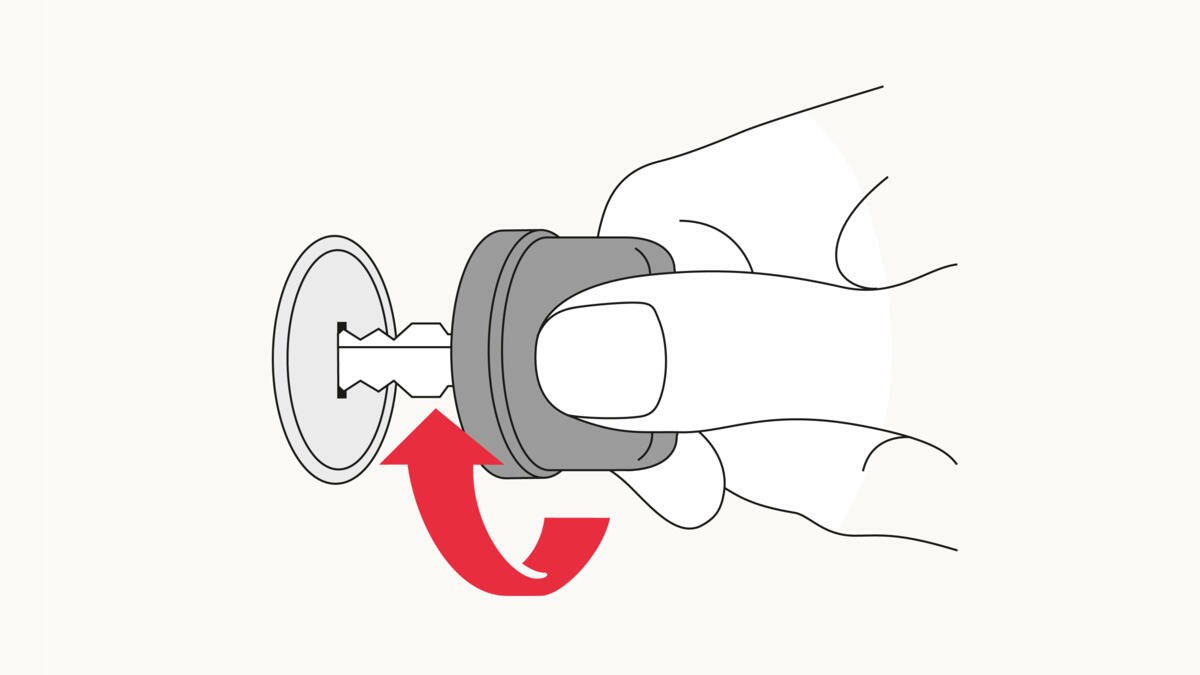

Easy starting, security and VTS

Easy starting, security and VTS

Start it like a car, trust it like a friend. Between PrimeStart™, battery-less EFI, VTS speed control and Y-COP key fob locking system, it’s convenience with confidence built in.

Compatible with Yamaha's Digital Network Gauges

Compatible with Yamaha's Digital Network Gauges

Information meets intuition. Hook up to real-time data at a glance; speed, e ciency, performance; all wrapped in smooth, stress-free control.

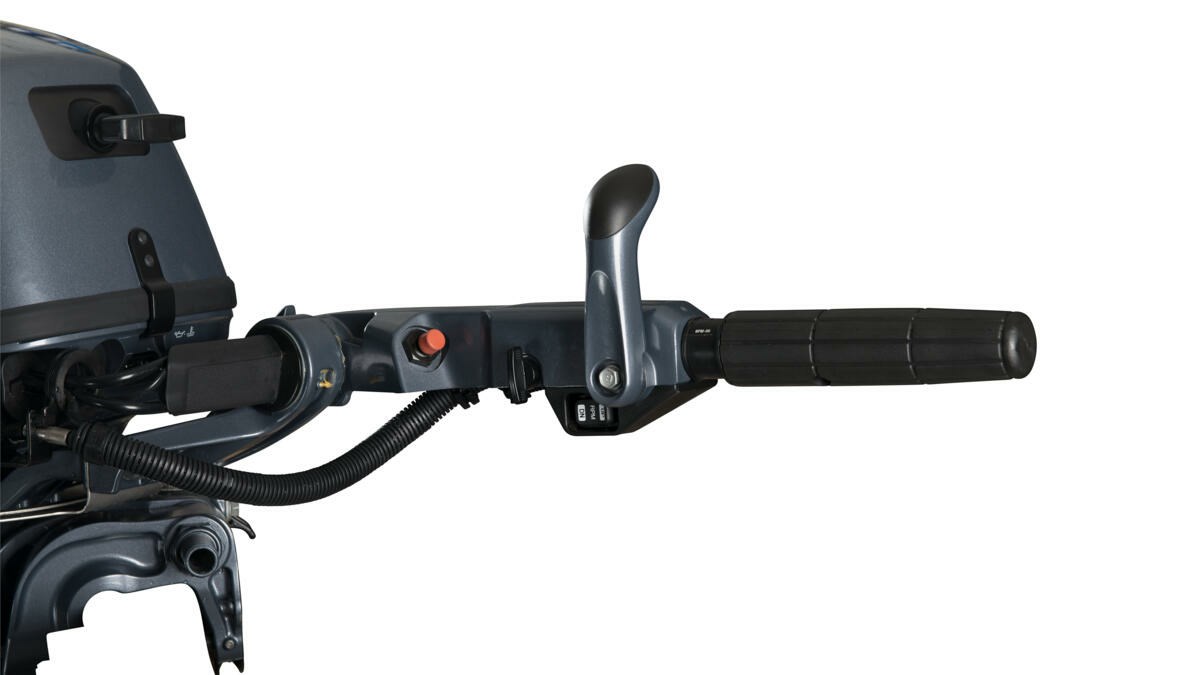

Large multi-function tiller handle option

Large multi-function tiller handle option

Because two hands are overrated. This larger tiller brings throttle, gear and trim within easy reach, keeping every control right where it should be; at your ngertips.

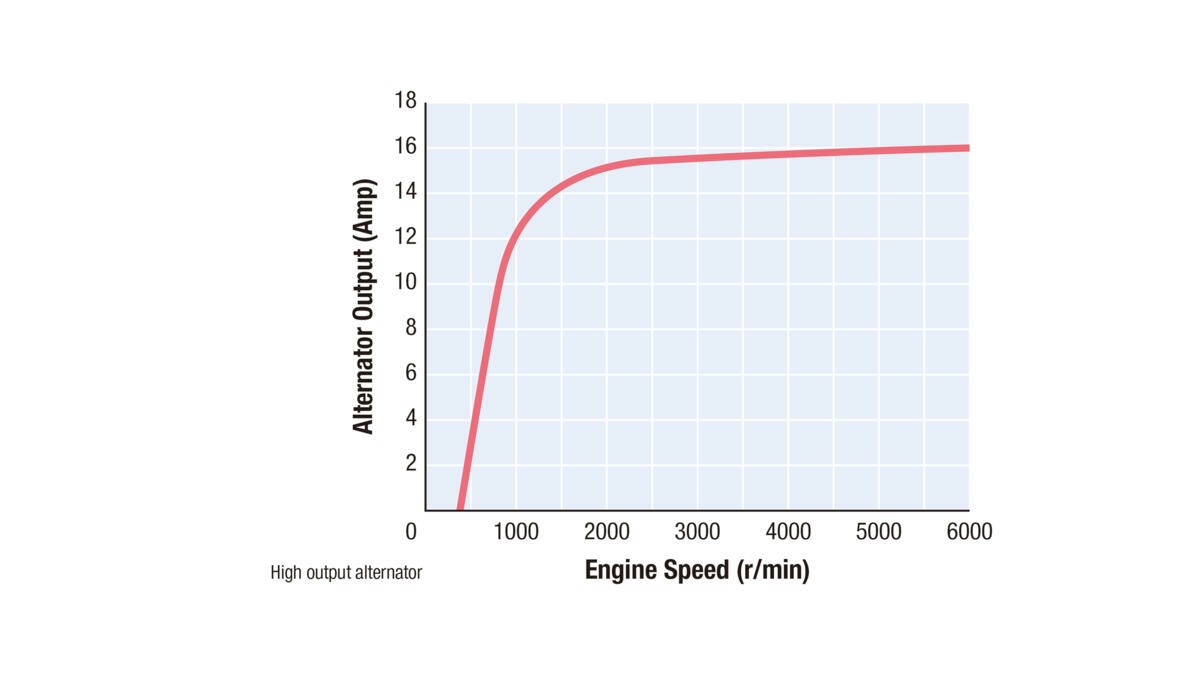

High-output alternator keeps the power coming

High-output alternator keeps the power coming

Never run out of juice mid-journey. The high- output alternator keeps power owing for starts, lights and all your onboard extras. Because nothing ruins a sunset faster than a dead battery.



Technical Specifications

Dimensions

Overall width: MH, EH, EHP: 420 mm, E, EP: 390 mm, F20G: 378 mm
Steering angleManual: 45 degrees (PT: 40 degrees) each direction
Engine transom heightmm, F20G: S: 424 mm, S: 429 mm: EP, WP, WHP L: 551
Dry weight51 kg - 61 kg, F20G; 56 kg - 66 kg

Engine

Ignition / advance system: CDI, F20G: TCI
Engine oil capacity: F20G: 1.1 L/ 1.0 L (with / without oil lter
Compression ratio: 9.3 : 1, F20G: 9.1 : 1
Alternator10 A (Except MH), F20G: 16 A
Lubrication system: Wet sump
Bore x stroke63.0 × 58.1 mm, F20G: 65.0 × 65.1 mm
Engine typeSOHC, In-line 2 cylinders
Displacement362 cm³, F20G: 432 cm³
Fuel induction system1 carburetor, F20G: Fuel injection
