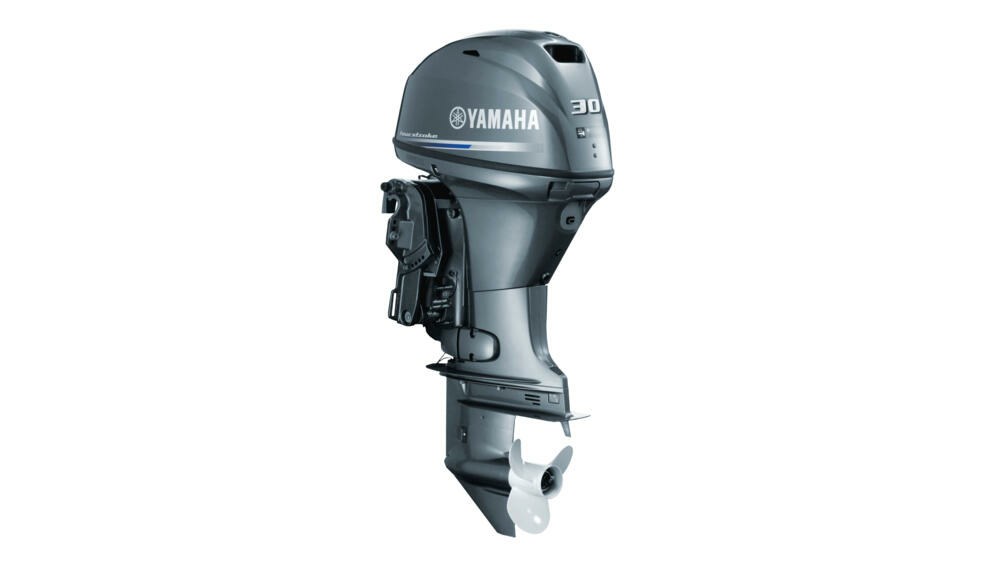

30hp Yamaha Outboard
Download Fact Sheet
Technical Specifications
Dimensions
- Overall length
- EHT, EHD: 1362 mm, ET: 698 mm
- Overall width
- 384 mm
- Steering angle
- 40 degrees each direction
- Overall height
- S: 1228 mm, L: 1350 mm
- Engine transom height
- S: 414 mm, L: 536 mm
- Dry weight
- 94 kg - 106 kg
Engine
- Ignition / advance system
- CDI
- Engine oil capacity
- 1.7 L / 1.5 L (with / without oil lter replacement)
- Compression ratio
- 9.4 : 1
- Alternator
- 17 A (battery charging: 13 A)
- Lubrication system
- Wet sump
- Bore x stroke
- 65.0 × 75.0 mm
- Engine type
- SOHC, In-line 3 cylinders
- Displacement
- 747 cm³
- Fuel induction system
- Fuel injection
