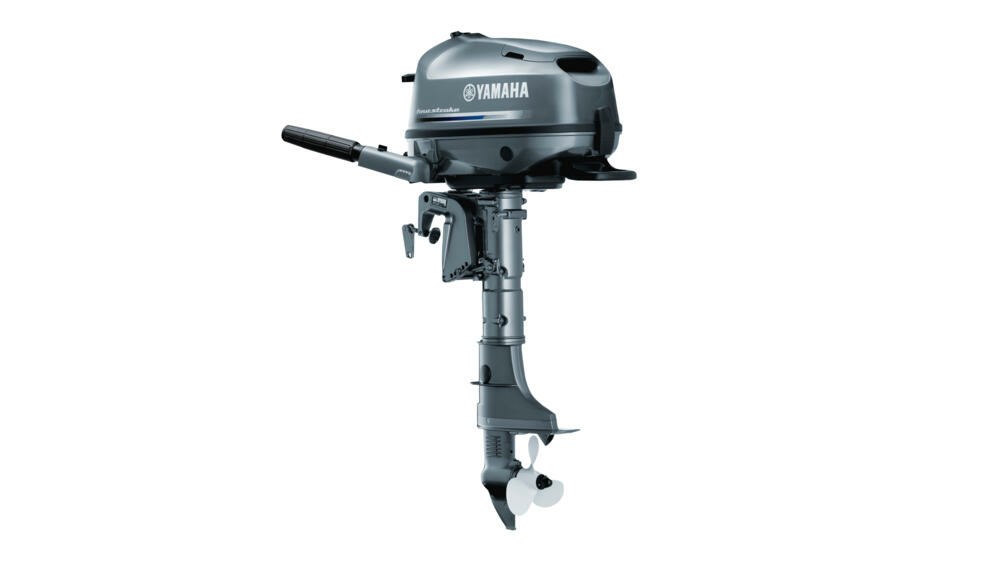

6hp Yamaha Outboard
Download Fact Sheet
Technical Specifications
Dimensions
- Overall length
- 750 mm
- Overall width
- 403 mm
- Steering angle
- 90 degrees each direction
- Overall height
- S: 1039 mm, L: 1166 mm
- Engine transom height
- S: 435 mm, L: 562 mm
- Dry weight
- S: 27 kg, L: 28 kg
Engine
- Ignition / advance system
- CDI
- Engine oil capacity
- 0.6 L
- Compression ratio
- 8.9 : 1
- Alternator
- 6 A with optional regulator
- Lubrication system
- Wet sump
- Bore x stroke
- 62.0 × 46.0 mm
- Engine type
- OHV, 1-cylinder
- Displacement
- 139 cm³
- Fuel induction system
- 1 carburetor
