Yamaha 70HP Outboard

£7825

Built tough from double-walled polyethylene — low maintenance, safe, and ready for work or play.

Order direct with Flood Marine → Build a package →

Yamaha 70HP Outboard

70hp Yamaha Outboard
Download Fact Sheet

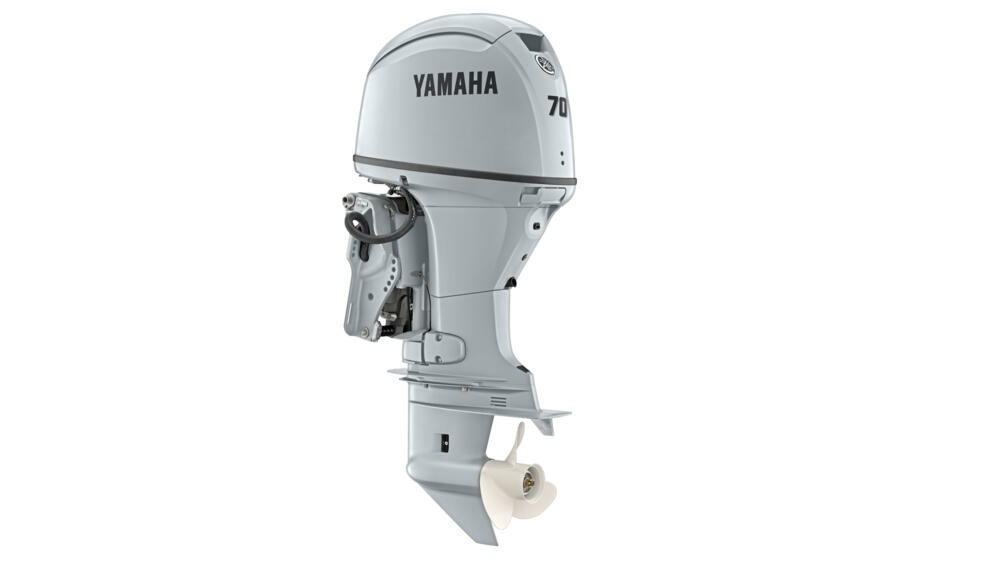

70hp Yamaha outboard engine

Technical Specifications

Dimensions

Overall length
713 mm
Overall width
386 mm
Steering angle
40 degrees each direction
Overall height
L: 1484 mm, X: 1598 mm
Engine transom height
L: 534 mm, X: 648 mm
Dry weight
120 kg - 124 kg

Engine

Ignition / advance system
TCI
Engine oil capacity
2.1 L / 1.9 L (with / without oil lter replacement)
Compression ratio
9.4 : 1
Alternator
15 A (battery charging: 9 A)
Lubrication system
Wet sump
Bore x stroke
65.0 × 75.0 mm
Engine type
SOHC L4 16 valves
Displacement
996 cm³
Fuel induction system
Fuel injection
